Real latest Cisco CCDP 300-115 dumps exam (20) questions and answers
QUESTION 1

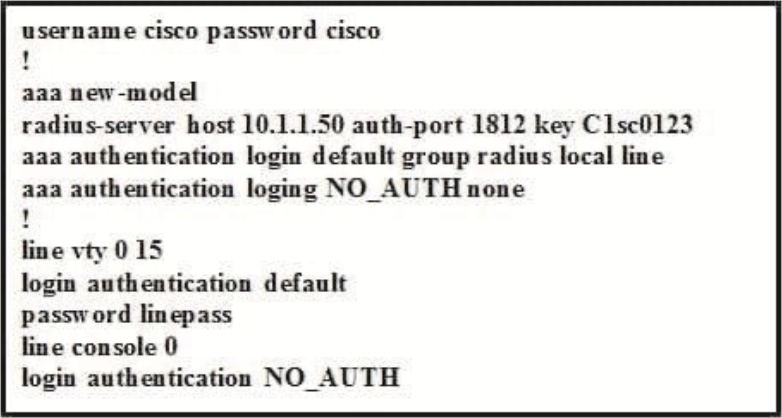

Refer to the exhibit.
When a network administrator is attempting an SSH connection to the device, in which order does the device check the login credentials?
A. RADIUS server, local username, line password
B. RADIUS server, line password, local username
C. Line password, local username, RADIUS server
D. Line password, RADIUS server, local username
Correct Answer: A
QUESTION 2
Which database is used to determine the validity of an ARP packet based on a valid IP-to-MAC address binding?
A. DHCP snooping database
B. dynamic ARP database
C. dynamic routing database
D. static ARP database
Correct Answer: A
QUESTION 3
When you configure private VLANs on a switch, which port type connects the switch to the gateway router?
A. promiscuous
B. community
C. isolated
D. trunked
Correct Answer: A
QUESTION 4
Which option is a benefit of using VSS? 300-115 dumps
A. reduces cost
B. simplifies configuration
C. provides two independent supervisors with two different control planes
D. removes the need for a First Hop Redundancy Protocol
Correct Answer: D
QUESTION 5
Which VRRP router is responsible for forwarding packets that are sent to the IP addresses of the virtual router?
A. virtual router master
B. virtual router backup
C. virtual router active
D. virtual router standby
Correct Answer: A
QUESTION 6
RSPAN has been configured on a Cisco Catalyst switch; however, traffic is not being replicated to the remote switch. Which type of misconfiguration is a cause?
A. The RSPAN designated VLAN is missing the remote span command.
B. The local and remote RSPAN switches are configured using different session IDs.
C. The local RSPAN switch is replicating only Rx traffic to the remote switch.
D. The local switch is overloaded with the amount of sourced traffic that must be replicated to the remote switch.
Correct Answer: A
QUESTION 7
A network engineer is installing a switch for temporary workers to connect to. The engineer does not want this switch participating in Spanning Tree with the rest of the network; however, end user connectivity is still required. Which spanning-tree feature accomplishes this?
A. BPDUblock
B. BPDUfilter
C. BPDUignore
D. BPDUguard
E. BPDUdisable
Correct Answer: B
QUESTION 8
Enablement of which feature puts the port into err-disabled state when the port has PortFast enabled and it receives BPDUs?
A. BPDU filtering
B. BackboneFast
C. EtherChannel
D. BPDU guard
Correct Answer: D
QUESTION 9
When a Layer 2 EtherChannel is configured, which statement about placement of the IP address is true?
A. The IP address is placed on the highest numbered member port.
B. The IP address is placed on the port-channel logical interface.
C. The IP address is placed on the lowest numbered member port.
D. The IP address is assigned via DHCP only.
Correct Answer: B
QUESTION 10
Which two statements about SPAN source and destination ports during an active session are true? (Choose two.)
A. The source port can be only an Ethernet physical port.
B. The source port can be monitored in multiple SPAN sessions.
C. The destination port can be destination in multiple SPAN sessions.
D. The destination port does not participate in STP.
E. You can mix individual source ports and source VLANs within a single session.
Correct Answer: BD
QUESTION 11
Which two options are two results of using the command spanning-tree vlan 50 root primary within a spanning-tree network under global configuration? 300-115 dumps (Choose two.)
A. Spanning tree determines the priority of the current root for VLAN 50 and reduces the priority of the local switch to a lower value.
B. The priority value for VLAN 50 is set to 4094 on the root while the local switch priority is set to 32768.
C. The spanning-tree timers are reduced to improve the convergence time for VLAN 50.
D. All ports that are configured on the current switch with VLAN 50 transition to designated ports.
E. The switchport that is configured for VLAN 50 is the primary connection to the spanning-tree root switch.
Correct Answer: AD
QUESTION 12
Refer to the exhibit,
which statement abort the current configuration on port GigabitEthernet2/0/1 is true?
A. It is an access port configured for a phone and a PC
B. It is a trunk port and the native VLAN is VLAN1
C. It is a trunk port and the natrve VL AN m VLAN 700
D. It is an access port in VLAN 700
Correct Answer: B
QUESTION 13
An enterprise network has port security sticky enabled on all access ports. A network administrator moves a PC from one office desk to another. After the PC is moved, the network administrator clears the port security on the new network switch port connecting to the PC, but the port keeps going back into errdisabled mode. Which two factors are possible causes of this issue? (Choose two)
A. Port security sticky exists on the new network switch port
B. Port security sticky is disabled on the new network switch port
C. Port security must be disabled on all access ports
D. Port security is still enabled on the older network switch port
E. Port security sticky is still enabled on the older network switch port
Correct Answer: AE
QUESTION 14
Refer to the exhibit. Which two commands ensure that DSW1 becomes root bridge for VLAN 10 and 20? (Choose two)
A. spanning-tree mstp 1 priority 0
B. spanning-tree mst 1 root primary
C. spanning-tree mst vlan 10,20 priority root
D. spanning-tree mst 1 priority 4096
E. spanning-tree mst 1 priority 1
F. spanning-tree mstp vlan 10,20 root primary
Correct Answer: BD
QUESTION 15
What is the default port security violation
A. log
B. shutdown
C. no change
D. error-disable
Correct Answer: B
QUESTION 16
Which will identify the master switch in stack wise?
A. lower priority
B. higher priority
C. lower id
D. higher id
Correct Answer: B
QUESTION 17
Question about trunk configuration 300-115 dumps
int faX/X
switchport trunk allowed vlan x,x,x,x
switchport mode trunk
exit
show vlan
VLAN Name Status Ports
— ——————–?—— ———————
1 default active Fa0/1, Fa0/3, Fa0/3, FaX/X
show interface trunk
(no output)
A. link is shutdown
B. interface needs no shutdown
C. other side is configured as access port
D. missing switchport command
Correct Answer: A
QUESTION 18

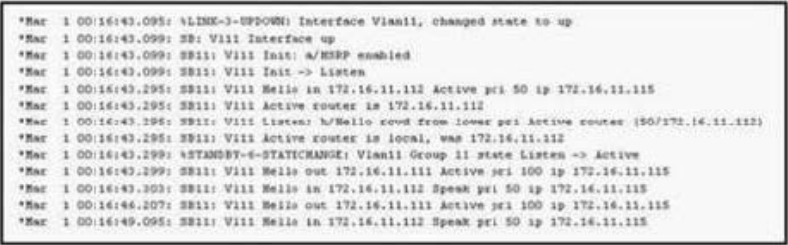

Refer to the exhibit.
Based on the debug output, which three statements about HSRP are true? (Choose Three)
A. The final active router is the router with IP address 172.16.11.111
B. The router with IP address 172.16.11.111 has preempt configured
C. The priority of the router with IP address 172.16.11.112 is preferred over the router with IP address 172.16.11.111
D. The IP address 172.16.11.115 is the virtual HSRP IP address
E. The router with IP address 172.16.11.112 has nonpreempt configured
F. The router with IP address 172.16.11.112 is using default HSRP priority.
Correct Answer: ABD
QUESTION 19
Your customer has asked you to come in and verify the operation of routers R1 and R2 which are configured to use HSRP. They have questions about how these two devices will perform in the event of a device failure.
Refer to the exhibit. If router R1 interface Etherne0/0 goes down and recovers, which of the statement regarding HSRP priority is true?
A. The interface will have the priority decremented by 40 for HSRP group 1.
B. The interface will have the priority decremented by 60 for HSRP group 1
C. The interface will have its current priority incremented by 40 for HSRP group 1
D. The interface will have its current priority incremented by 60 for HSRP group 1
E. The interface will default to the a priority of 100 for HSRP group 1
Correct Answer: C
QUESTION 20
Ferris Plastics, Inc. is a medium sized company, with an enterprise network (access, distribution and core switches) that provides LAN connectivity from user PCs to corporate servers. The distribution switches are configured to use HSRP to provide a high availability solution.
DSW1 -primary device for VLAN 101 VLAN 102 and VLAN 105
DSW2 – primary device for VLAN 103 and VLAN 104
A failure of GigabitEthemet1/0/1 on primary device should cause the primary device to release its status as the primary device, unless GigabitEthernet1/0/1 on backup device has also failed.
Troubleshooting has identified several issues. Currently all interfaces are up. Using the running configurations and show commands, you have been asked to investigate and respond to the following question.
What is the priority value of the VLAN 105 HSRP group on DSW2?
A. 50
B. 100
C. 150
D. 200
Correct Answer: B
